How to Charge Your Tesla Safely & Efficiently - Get the Right Tools, Wires, and Connectors!
When it comes to charging your Tesla, you'll need the right wire for the job. Depending on what kind of charging you're planning to do, you'll need either a Wall Connector or a 14-50 outlet. If you're going with the latter, make sure to get a good one like Hubbell or Leviton. You'll also need a dual-pole circuit breaker for 50 amps, though the Wall Connector can do more than that. Keep in mind that residential settings generally aren't equipped for one circuit higher than 50 amps.
Before ordering wire, ask yourself how far away from the circuit breaker box is the place you want to charge? Is part of the wiring from the circuit breaker box to the charging spot, or the charging spot itself, going to be outdoors? If so, to meet code you're going to have to put the wiring inside. Even if you're not certain about the quality of the wire or its insulation, it's best to underrate it and go with something like 4 guage which can handle 80 amps but should be limited to 60 or 50 amps. This will ensure that it won't overheat and won't be able to touch anything that can ignite or melt if the wire gets hot.

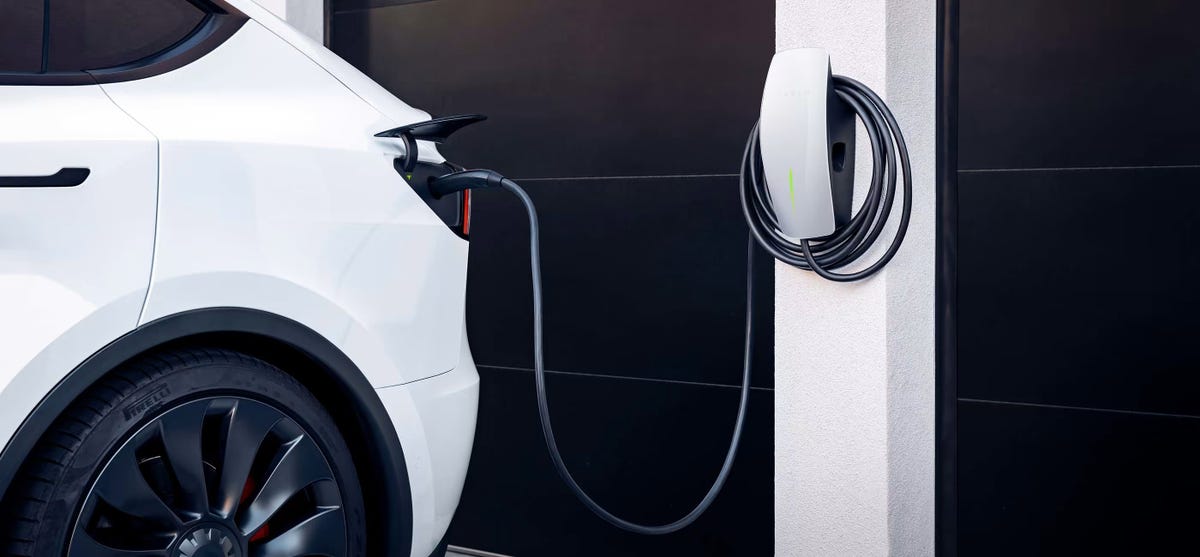

When it comes to conduit, it depends on what the code requires in your area and what you're more comfortable working with. Metal is a little harder to work with in general than grey plastic and takes more equipment and parts to cut and assemble. Finally, decide whether you want a Wall Connector or Mobile Connector. With all these considerations in mind, you'll be ready to charge your Tesla safely and efficiently!
When it comes to the actual installation, make sure you have all the right tools and materials. You'll need a drill, screwdriver, wire strippers, pliers, and a voltage tester. If you're working with metal conduit, you'll also need a hacksaw or pipe cutter. It's also important to have the right safety equipment like gloves, goggles, and a face mask.
Once you have everything ready, it's time to start wiring. Start by running the wire from the circuit breaker box to the charging spot. Make sure to leave enough slack in the wire so that it won't be too tight when you connect it. Then attach the Wall Connector or Mobile Connector to the wall at the charging spot. Finally, connect the wires from the circuit breaker box to the connector. Make sure to double check your connections before turning on the power!
Now that your Tesla is wired up and ready to go, it's time to test it out. Plug in your car and make sure that everything is working properly. Check for any sparks or smoke coming from the connection points and make sure that all lights are functioning correctly. Once you're satisfied that everything is working as expected, you can start charging your Tesla!
Charging your Tesla doesn't have to be difficult or intimidating. With some basic knowledge of wiring and safety protocols, you can easily install a charger yourself and enjoy all the benefits of owning an electric vehicle. Just remember to always take safety precautions and double check your work before turning on the power!
What wire should I use for my home charger?
You should consider what kind of charging you are planning to do, whether there is a space in your circuit breaker box for a dual-pole circuit breaker, how far away from the circuit breaker box is the place you want to charge, and if part of the wiring from the circuit breaker box to the charging spot, or the charging spot itself, will be outdoors. Generally, it is recommended to use a 14-50 outlet like Hubbell or Leviton, and a 50 amp dual-pole circuit breaker. It is also recommended to underrate the circuit to limit its ability to generate heat.
Is it safe to use more than 50 amps?
More than 50 amps takes too much of a share of the average home mains service (200 amps) and generates a lot more heat for only a slightly faster charging. Residential settings generally aren't equipped for one circuit higher than 50 amps.
What if I'm uncertain about the quality of the wire or its insulation?
If you're uncertain about the quality of the wire or its insulation, underrate it. So even though 4 guage can handle 80 amps, underrating it to 60 or 50 will make certain it will never overheat. Putting it in conduit is even better, because it won't be able to touch anything that can ignite or melt if the wire gets hot.
Should I use metal conduit?
It depends what the code requires in your area (it should be easy to look up with Google) and what you're more comfortable working with. Metal is a little harder to work with in general than the grey plastic and takes more equipment and parts to cut and assemble. But it's also more durable and fire-resistant, so it's a good choice if you're running the wire through an area that could be exposed to the elements.
What type of wire should I use?
The most common type of wire used for home charging is 10 AWG (American Wire Gauge) copper. It is rated for up to 30 amps and is usually sufficient for most home charging applications. If you are planning on using a higher amperage circuit, then you will need to use a heavier gauge wire such as 8 AWG or 6 AWG.
How do I know how much current my charger can handle?
You should check the specifications of your charger to determine the maximum current it can handle. This information should be printed on the charger itself or in the manual that came with it. Generally speaking, most home chargers are rated for up to 30 amps.
Is there anything else I should consider when wiring my charger?
Yes, you should make sure that all of the wiring is properly secured and insulated. You should also make sure that any exposed wires are covered with electrical tape or other insulation material. Finally, you should make sure that all connections are tight and secure.
